Project Trans Am for August, 2013 – Exhaust System, Cooling System & Transmission, and Electrical

This has been another productive month for Project Trans Am!

Exhaust System Installed

This was a major pain in the rear. I think the Pypes brand exhaust makes a quality product, but I have to admit that the amount of tweaking I had to do to make the system work in my car was beyond what I expected for the price I paid. Most of the headaches were from the mufflers back. I purchased a second tail pipe kit in hopes to get the chrome splitter tips lined up better with no luck. I will need to take the car to a muffler shop to get the tips welded on. The stainless steel Pypes tips are not capable of being clamped onto the tail pipes, leaving only welding as an option.

If I had to do it over again, I would get the 2nd Generation Firebird/Camaro dual exhaust system from Jegs or Summit Racing.

Installed all Engine Accessories, Wires and Hoses

This was a rather simple task, or set of tasks. The only problem I ran into was when I tried to bolt on the alternator without the power steering pump. The factory brackets are designed to have both brackets in place, so when I installed them without the power steering brackets, the alternator did not line up. Once I installed the power steering pump though everything went together well. I decided not to run the power steering pump during engine break in and have since removed the power steering belt since I took the pictures below.

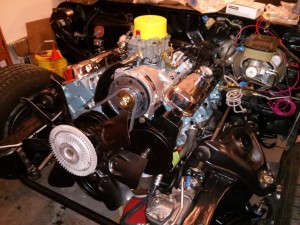

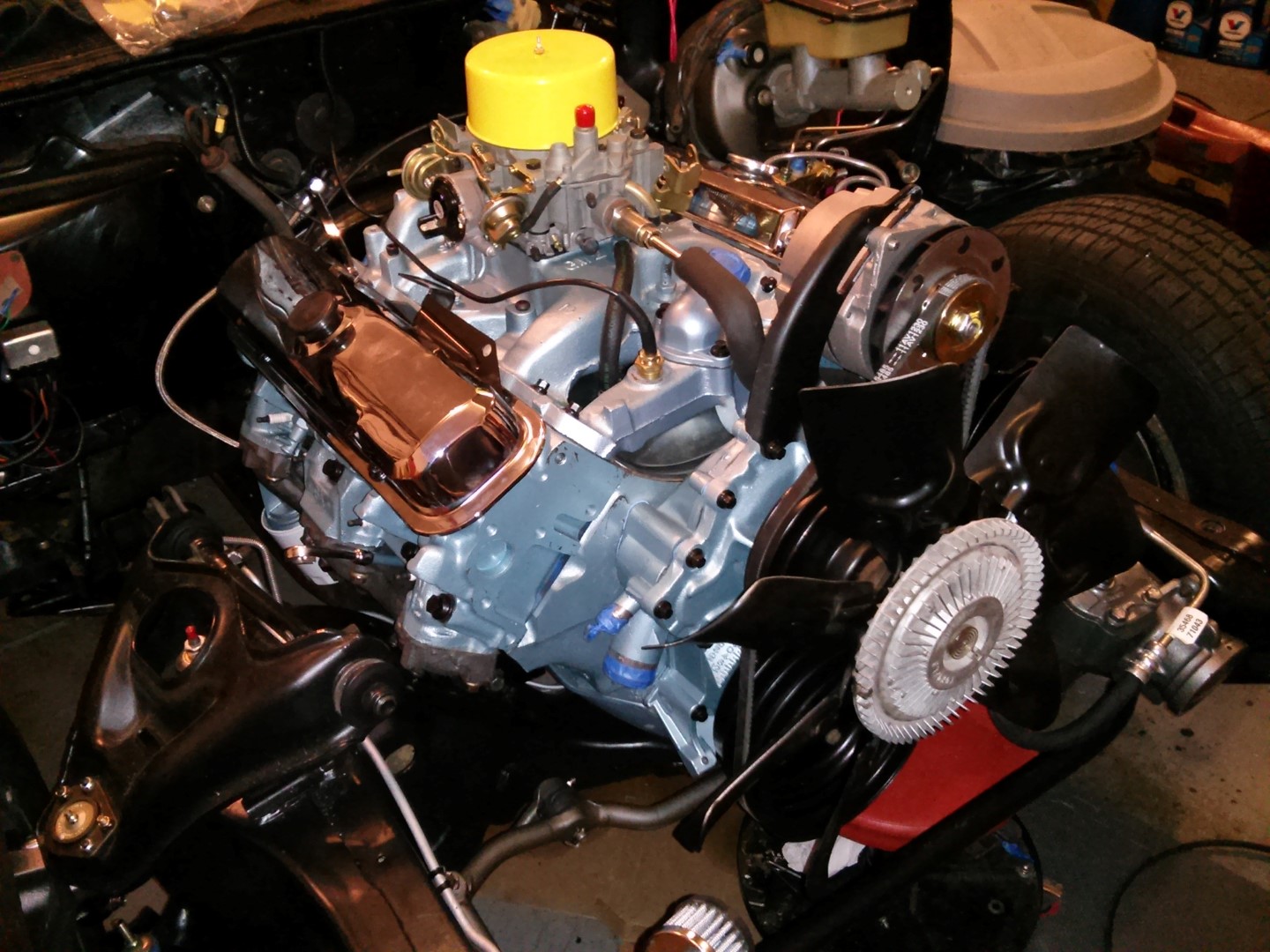

Engine Accessories Engine Accessories

Inner Fenders and Core Support Installed with Transmission Lines and Coolant Hoses

Installing the core support and inner fenders was pretty simple task. It took some time though since I am replacing all of the body U nuts and body bolts. The engine bay is really coming together now! Installing the transmission lines was the only annoying part. I had to buy a crowfoot 1/2″ wrench in order to tighten the transmission lines to the transmission because I already had the exhaust installed. Had I thought about this ahead of time, I could have installed the lines on the transmission side before running the exhaust.

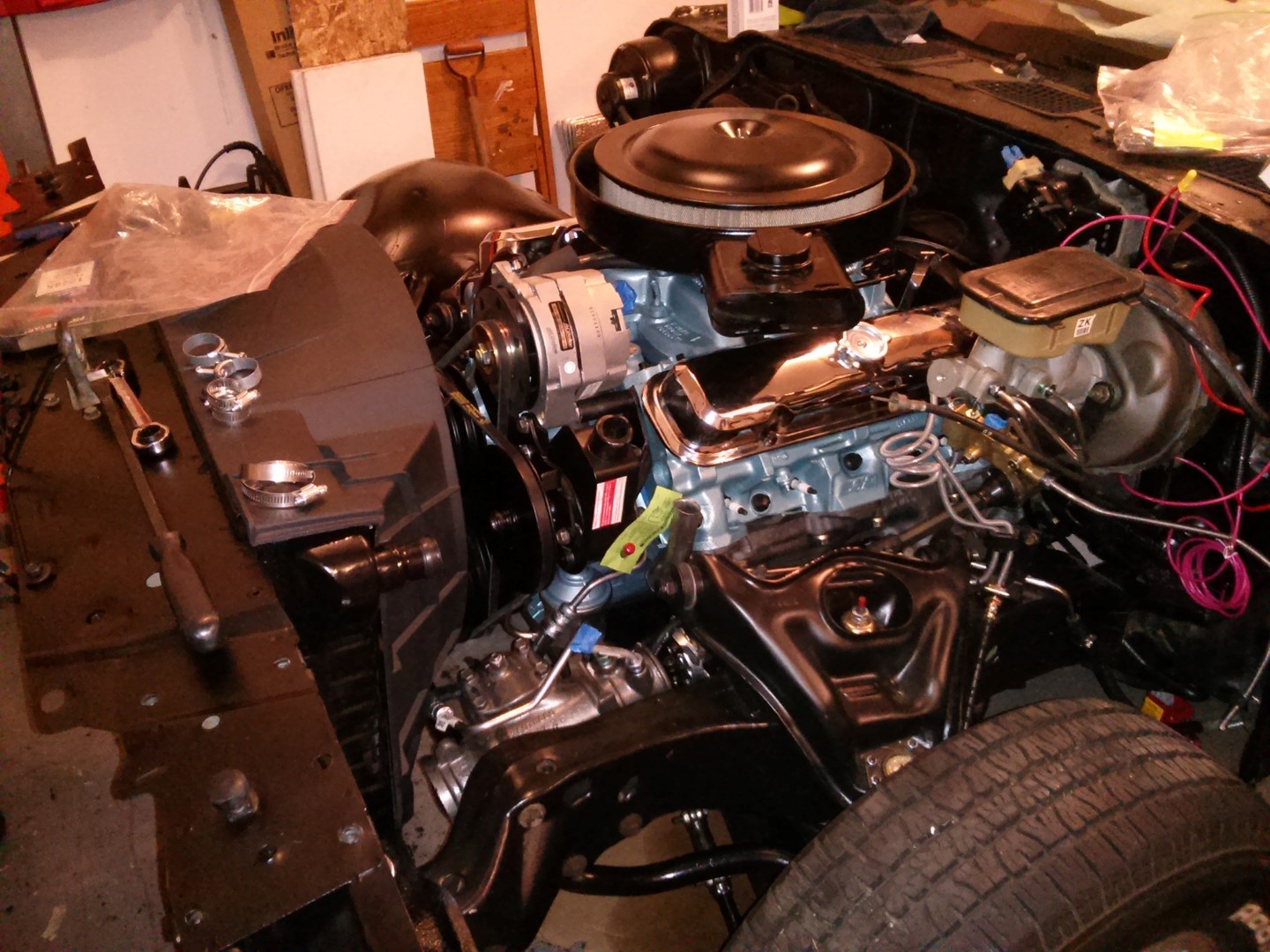

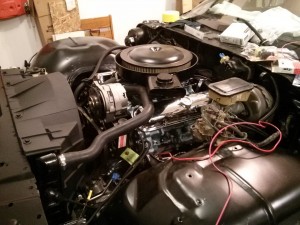

Core Support and Fenders Core Support and Fenders

Front Light Harness and Engine Harness

Luckily, the front headlight harness only needed a good cleaning. Unfortunately, I could not say the same for the engine harness. For the Engine harness, I started by identifying all the plugs that needed to be replaced, followed by replacing wire where ever possible. While I was working on the wiring harness, I decided to reroute the positive wires that go to the back of the alternator to a junction terminal on the inner fender. This allowed me to put all of the fusable links in the same location with easy access to repair if needed. Hopefully the fusable links never blow. The end result though is a much cleaner wiring system between the alternator and all of the necessary accessories.

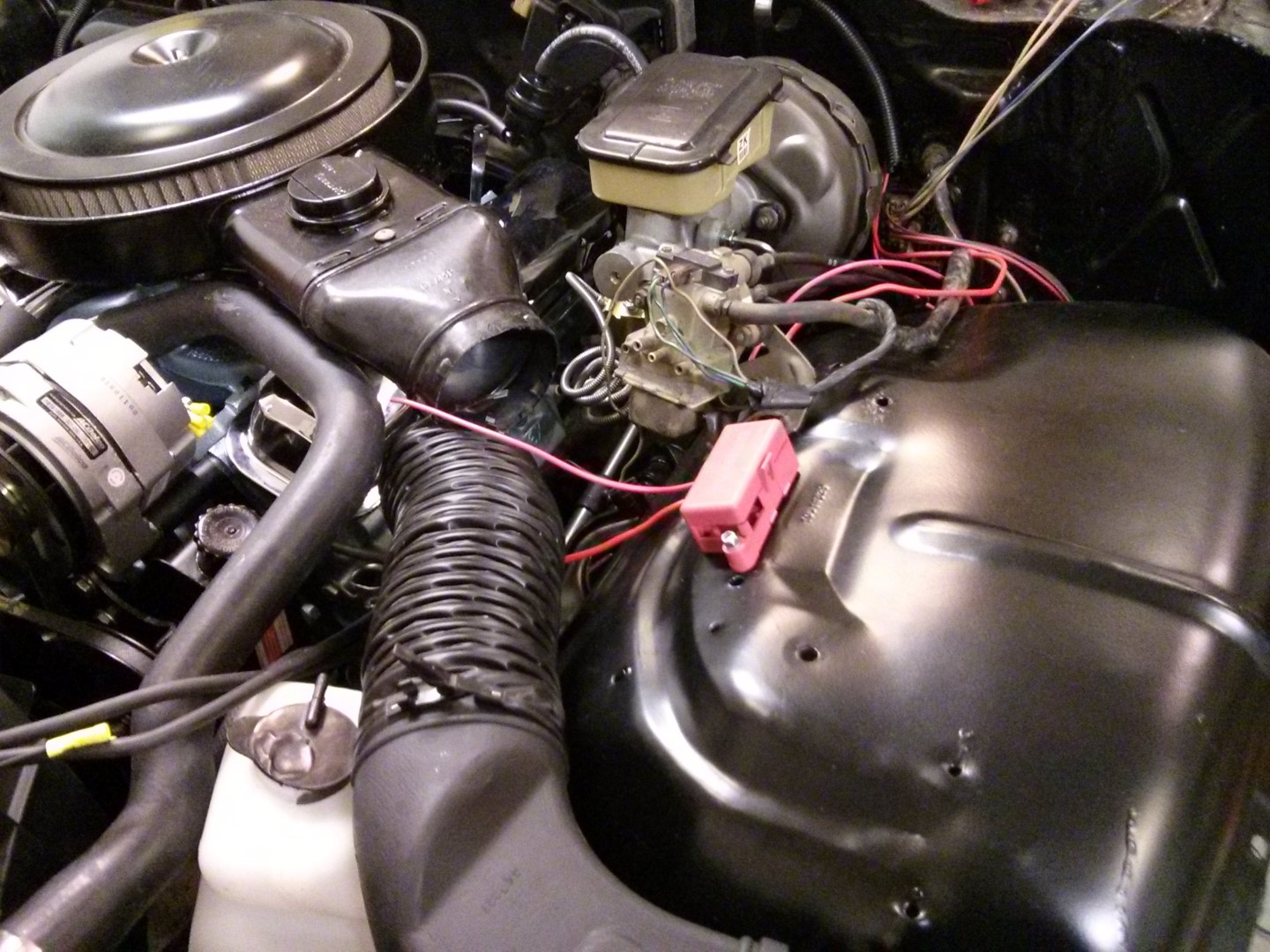

Engine Wiring

Here are some details: I used 10 gauge wire between the alternator and the red power junction box you see in the picture above. The junction box is Caspers Electronics 103004, I got it from Jegs here in Columbus. Not shown in the picture is the factory wiring that I rewired plus the 2 additional wires I added for the AC/heater fan (12 gauge wire) and wire to fuse block in glovebox for the stereo and power windows (10 gauge wire).

What’s Next?

She’s almost ready to start! Stay tuned for September for engine break-in details!

2 thoughts on “Project Trans Am for August, 2013 – Exhaust System, Cooling System & Transmission, and Electrical”

  1. Great to see someone else putting this much effort into one of these cars. It’s looking really good! I’m also restoring an 81 and I’m hoping I’ll finally finish this year. Found your website when I was looking for some information on the Pypes crossflow kit. I’m having the same problem it sounds like you’re having. Terrible fitment from muffler back. I cut the pipe where the elbow would exit parallel to the ground and the splitter was too far back. So I cut more off of the pipe (just above the hanger bracket) and now the elbow fits like crap and the passenger side splitter still doesn’t sit right. Did you end up sending your car to a muffler shop or did you try the pre-bent pipe section route?

    I’ll keep reading through your website. I’m sure I’ll have more questions for you. Looks like it will be a good resource. Check my build out when you can. http://www.geraldsgto.com. Website started out as a gto restoration site, hence the name. It turned into a trans am website when I started on that car. Really need to get a new domain name for it.

    1. Thanks! I’ve been following your blog for a couple years now, I actually have your posts on painting the phoenix yourself bookmarked.
